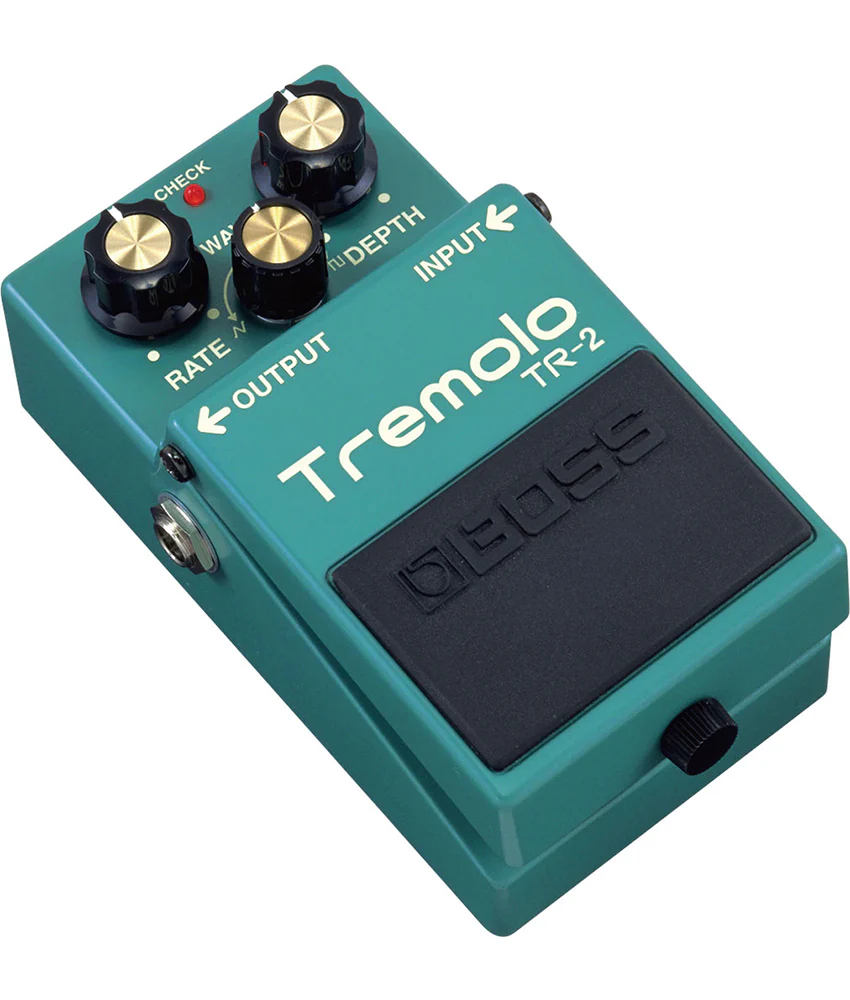

Boss TR-2 Tremolo Guitar Pedal

Boss TR-2 Tremolo Guitar Pedal

The BOSS TR-2 Tremolo is designed to provide guitarists with classic tremolo effects in an easy-to-use compact pedal. Dedicated "Wave," "Rate," and "Depth" knobs provide a multitude of effect possibilities.

SPECIFICATIONS:
Nominal Input Level: -20 dBu
Input Impedance:1 M ohm
Nominal Output Level: -20 dBu
Output Impedance: 1 k ohm
Recommended Load Impedance: 10 k ohms or greater

Bypass: Buffered bypass

Controls:
DEPTH knob
RATE knob
WAVE knob
Pedal switch

Indicator: CHECK indicator (Used for indication of check battery)

Connectors:
INPUT jack: 1/4-inch phone type
OUTPUT jack: 1/4-inch phone type
DC IN jack

Power Supply:
Carbon-zinc battery (9 V, 6F22) or Alkaline battery (9 V, 6LR61)
AC adaptor (PSA series: sold separately)

Current Draw: 20 mA

INCLUDED ACCESSORIES:
Owner's manual
Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information")
Carbon-zinc battery (9 V, 6F22)

Options (sold separately): AC adaptor: PSA series

DIMENSIONS:
Width: 73 mm, 2-7/8 inches
Depth: 129 mm, 5-1/8 inches
Height: 59 mm, 2-3/8 inches
Weight (including battery): 400 g, 15 oz
